A TOP N + Other dashboard in Power BI highlights key data points (e.g., top 10 customers) while grouping the rest into an "Other" category for a clearer, more complete view. This approach ensures focus on top contributors without losing overall context.
Steps to Set Up Your TOP N + Other Dashboard
1. Setting up a Data model
Data model for this scenario:
Fact table:
Sales … Contains info about Margin + Sales and IDs for dimension
Dimension tables:
Salesman … ID Salesman | Salesman
Product category … ID Product category | Product category
Product … ID Product | Product

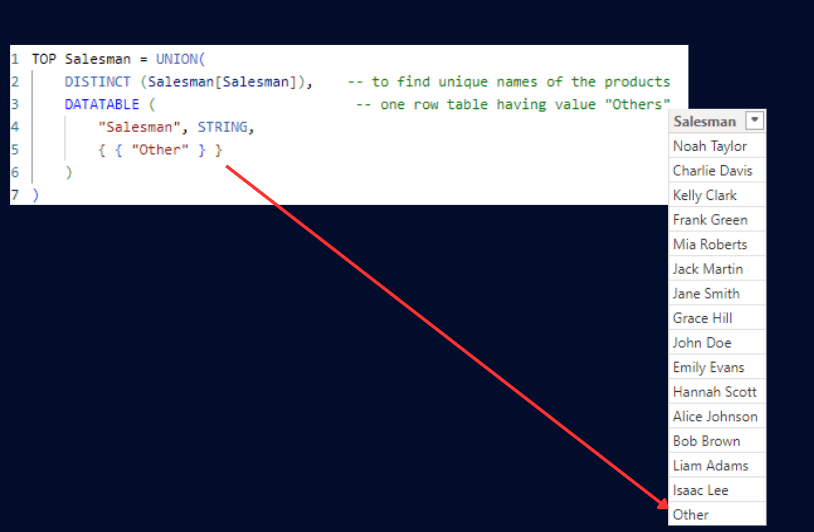

2. Calculated table to add ,,Other” as a new row
Create a calculated table that adds an "Other" row, grouping data not in the TOP N for a complete view.
DAX Calculated table:

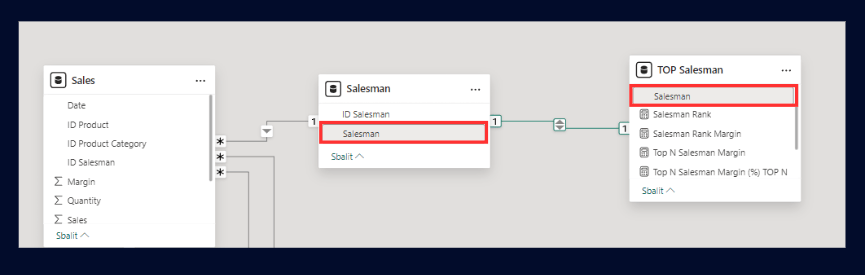

3. Connect calculated table to Dimension table
Link the calculated table to the dimension table to maintain relationships and ensure accurate filtering. Relationship should be set on the ,,Salesman” column in this case.
Repeat steps #2 and #3 for other Dim tables.

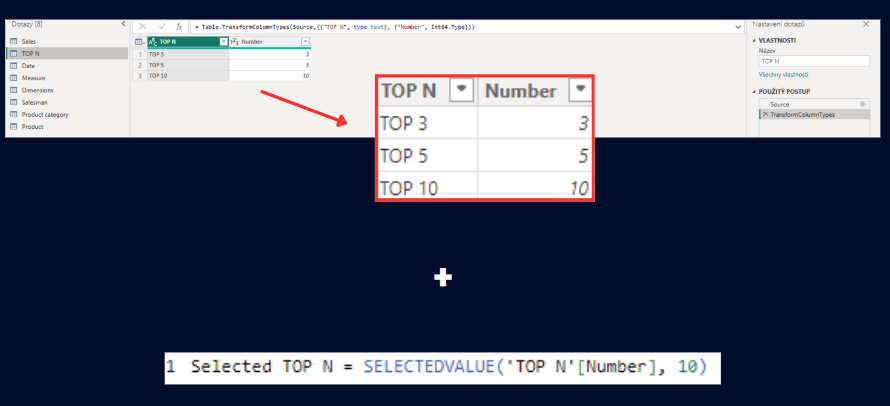

4. Create TOP N table + create Selected TOP N measure inside this table
Create a TOP N table and define a Selected TOP N measure within it to dynamically control the number of top items displayed. It is possible to create a TOP N table only by entering data.
Selected TOP N measure:
5. Create TOP N + Other Salesman Turnover measure
Create a TOP N + Other Salesman Turnover measure to calculate turnover for the top salesmen while grouping the rest into "Other."
TOP N Salesman Turnover:
Repeat this for Turnover and Margin in TOP Products, TOP Product category and TOP Salesman table.
6. Create Field parameter for Dimension and Measure table
Create a Field Parameter to switch between dimensions and measures dynamically, enhancing dashboard flexibility.
Dimension field parameter:

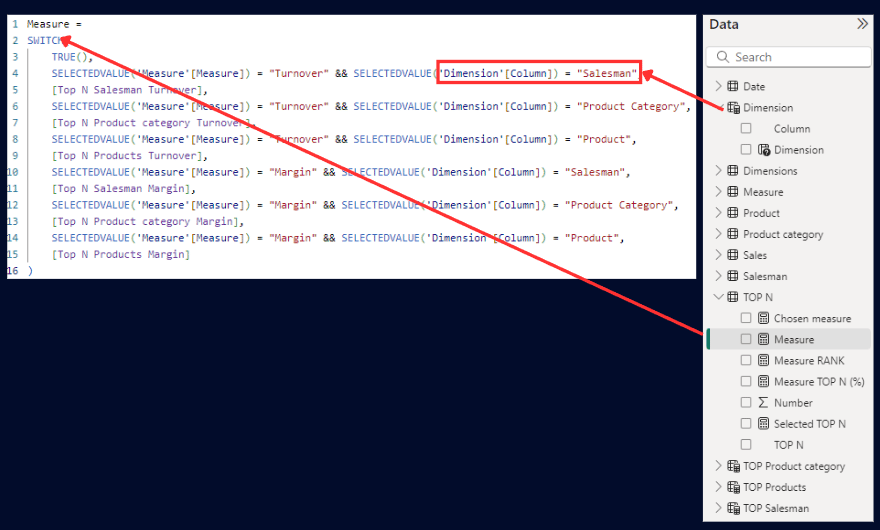

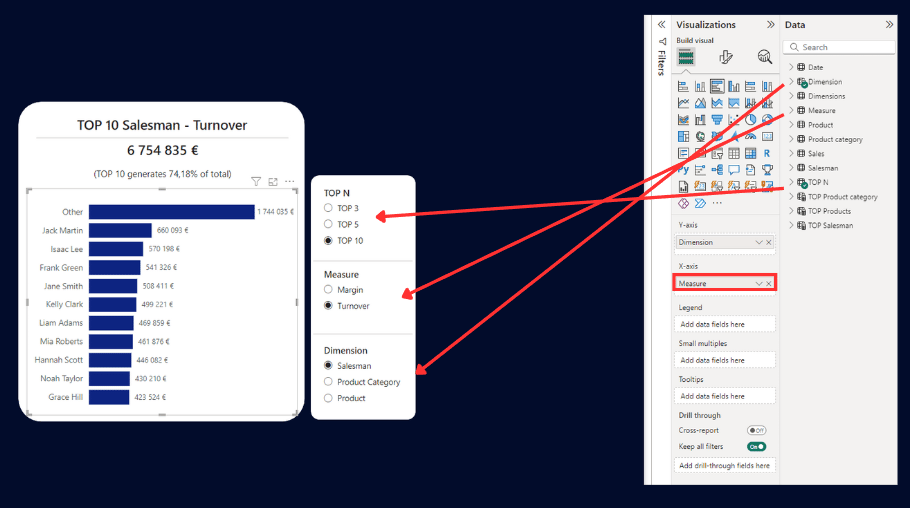

7. Final measure that switches between dimensions and measures
Create a Final Measure that dynamically switches between selected dimensions and measures for flexible data analysis.
DAX Measure:

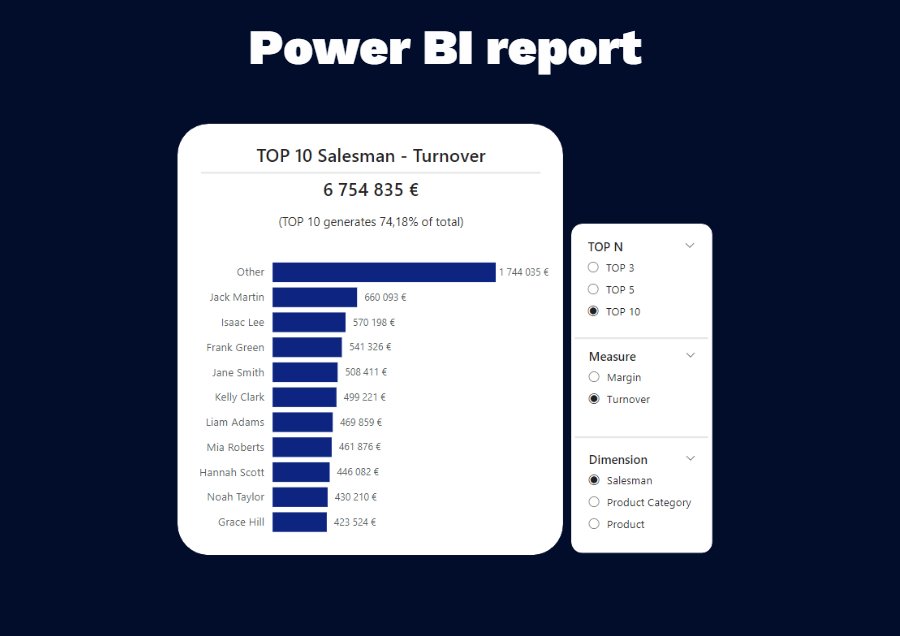

Final TOP N + Other Power BI Dashboard
The result is a powerful TOP N + Other Power BI dashboard providing a clear, complete view of your data. This dashboard helps you:
Highlight key contributors while preserving full data context.
Group smaller contributors into an "Other" category.
Enable dynamic control over TOP N selections.
Improve data clarity and decision-making.
Build your TOP N + Other Power BI dashboard today for better insights and smarter reporting!
